Description

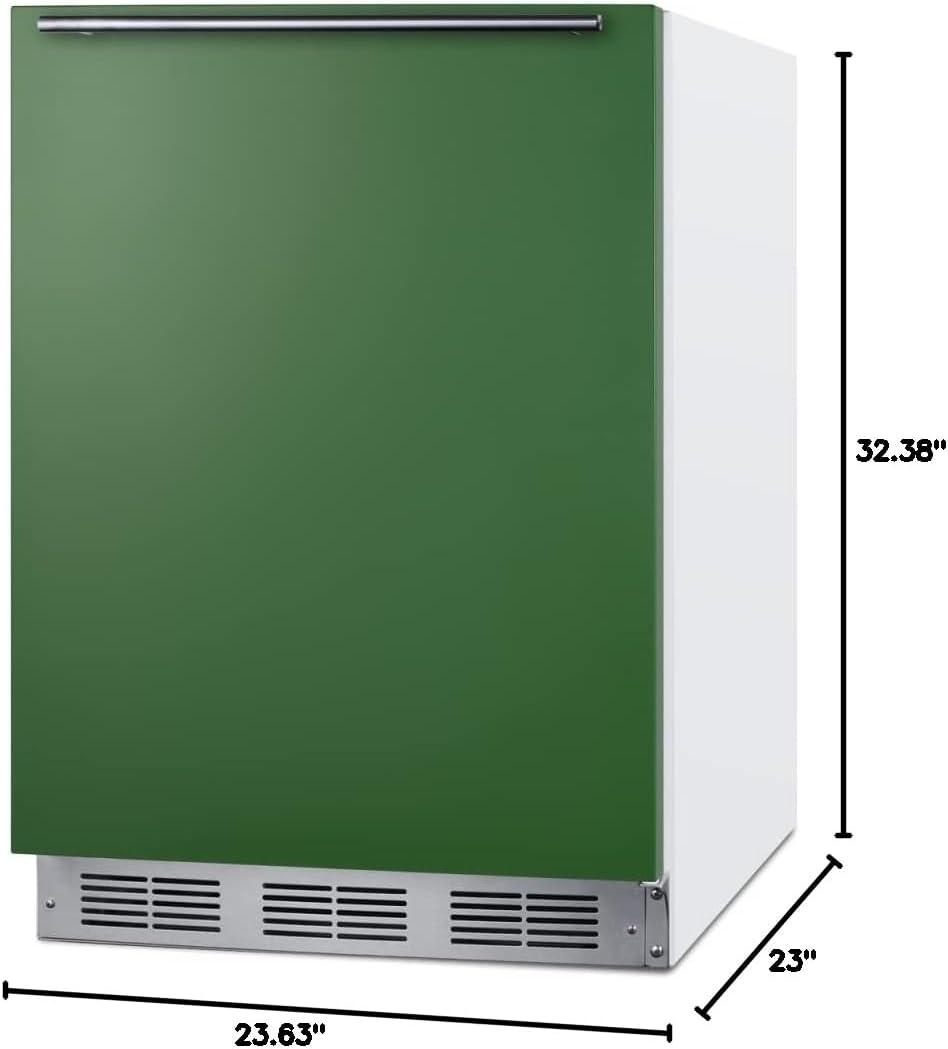

SPECIFICATIONS Overview Height of Cabinet 32.13″ (82 cm) Height to Hinge Cap 32.38″ (82 cm) Width 23.63″ (60 cm) Depth 23.0″ (58 cm) Depth with Handle 24.5″ (62 cm) Depth with door at 90° 45.25″ (115 cm) Capacity 5.1 cu.ft. (144 L) Defrost Type Cycle Door Green Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Energy Usage/Year 365.0kWh/year Amps 1.2 Voltage/Frequency 115 V AC/60 Hz Weight 110.0 lbs. (50 kg) Shipping Weight 130.0 lbs. (59 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101087733 Refrigerator-Freezer Door Swing RHD Reversible Yes Adjustable Shelves Yes Crisper Qty 1 Crisper Finish Transparent Crisper Cover Glass Wine Bottle Shelving Yes Interior Light Yes Refrigerator – Interior Height 18.0″ (46 cm) Refrigerator – Interior Width 21.0″ (53 cm) Refrigerator – Interior Depth 18.0″ (46 cm) Refrigerator – Capacity 4.5 cu.ft Refrigerator – Shelf Type Glass Refrigerator – Shelf Qty 2 Refrigerator – Full Door Shelves 3 Freezer – Interior Height 5.25″ (13 cm) Freezer – Interior Width 19.0″ (48 cm) Freezer – Interior Depth 11.5″ (29 cm) Freezer – Capacity 0.6 cu.ft Thermostat Type Dial Refrigerant Type R600a Refrigerant Amount 0.92 oz. High Side PSI 180.0 Low Side PSI 80.0 Compressor Step Height 5.5″ (14 cm) Compressor Step Width 21.0″ (53 cm) Compressor Step Depth 6.0″ (15 cm) AVAILABLE UPGRADES Door CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate Lock L-TopLock Add a single keyed lock located on top of the unit L-SideLock Add a single keyed lock located on the door's side Exterior Latch – Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. LHD – Left hand door swing Door reversal to left hand swing FEATURES 24″ wide European refrigerator-freezer Designed for freestanding or recessed installation in 24″ wide spaces ADA compliant design 32″ height for use in settings complying with ADA guidelines for lower counter height Slim counter height dimensions Ideal 24″ footprint offers full 5.1 cu.ft. storage capacity in a slim fit Emerald green door Deep green finish with a slight gloss to elevate your undercounter space Professional handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators Adjustable glass shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup Door shelves Store tall bottles and condiments right on the door for convenient access Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer Interior light Automatically illuminates when the door is opened Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior Adjustable thermostat Dial thermostat located inside for easy and intuitive temperature management Reversible door User-reversible door swing for added flexibility Stainless steel kickplate Added touch of style to complement the handle and complete the look CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations 100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals DESCRIPTION Make a statement under the counter with Summit's exclusive European collection of boldly colored refrigerators, available in standard or ADA compliant height. Model BRF611WHGADA is a 24″ wide refrigerator-freezer sized at just 32″ high for use in ADA compliant settings, with a generous capacity of more than 5 cu.ft. to meet general storage needs. The door finish comes in a striking emerald green, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. This unit has a white exterior cabinet. It is manufactured in Europe and modified in the United States with domestic steel finishing. Inside, the BRF611WHGADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. Additional colors are available, including saffron gold, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen. DOWNLOADS BROCHURE w/ DRAWINGS BRF611WHGADA.pdf TECHNICAL DRAWING (.dwg) CT66_1W-3BK_SSHHADA__w-COLOR_.dwg ASSEMBLY DRAWING CT66_1W-3BK_SSHHADA__w-COLOR_-Assembly.pdf USE & CARE CT661W_CT663BK_BRF611WH_BRF631BK_Use_and_Care_7-14-22.pdf
