Description

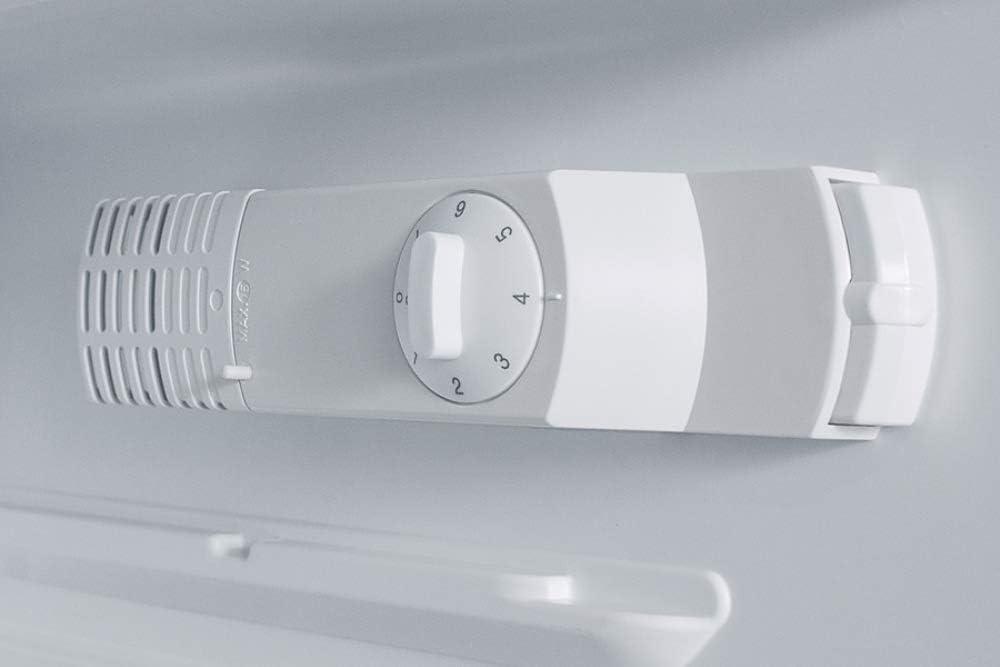

SPECIFICATIONS Overview Height of Cabinet 32.0″ (81 cm) Height to Hinge Cap 32.25″ (82 cm) Width 23.63″ (60 cm) Depth 23.0″ (58 cm) Depth with door at 90° 45.38″ (115 cm) Capacity 5.5 cu.ft. (156 L) Defrost Type Automatic Door Stainless Steel Cabinet Black US Electrical Safety ETL Canadian Electrical Safety ETL-C Energy Usage/Year 307.0kWh/year Amps 1.4 Voltage/Frequency 115 V AC/60 Hz Weight 100.0 lbs. (45 kg) Shipping Weight 115.0 lbs. (52 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101068268 Refrigerator Features Door Swing RHD Reversible Yes Shelf Type Glass Shelf Qty 3 Full Door Shelf Qty 3 Adjustable Shelves Yes Wine Bottle Shelves Yes Thermostat Type Dial Fan Type Exterior Refrigerant Type R600a Refrigerant Amount 0.64oz. High Side PSI 180.0 Low Side PSI 80.0 Interior Light Yes Dimensions Interior Height 26.25″ (67 cm) Interior Width 21.0″ (53 cm) Interior Depth 18.0″ (46 cm) Compressor Step Height 5.5″ (14 cm) Compressor Step Width 21.0″ (53 cm) Compressor Step Depth 6.0″ (15 cm) AVAILABLE UPGRADES Exterior DL2B – Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout HG – Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix SSK – Stainless steel kickplate Stainless steel kickplate factory installed Latch – Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. LHD – Left hand door swing Door reversal to left hand swing SCD – Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option SS Hinges Stainless steel top and bottom hinges Alarm/Thermometer Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations DT – Digital thermostat Install a digital thermostat with external readout for precise temperature management PH – Probe Hole Factory installed probe hole for customer supplied monitoring devices Interior FC – Internal Fan Internal fan for even temperature distribution throughout the unit interior FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior Lock AC Keypad – AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security KEYPAD – Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security Handle TBC Copper Towel Bar Handle Upgrade Change this handle to a 12″ vertically mounted towel bar style handle made from pure copper for protection FEATURES ADA compliant 32″ height to fit under lower ADA compliant counters Slim undercounter dimensions Ideal 24″ footprint offers full 5.5 cu.ft. storage capacity in a slim fit Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets Stainless steel wrapped door Durable design with lasting elegance Professional towel bar style handle Brushed stainless steel handle is mounted horizontally for an attractive look Automatic defrost Reduced maintenance with auto defrost system Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up Door shelves Store tall bottles and condiments right on the door for convenient access Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles Interior light Automatically illuminates when you open the door One piece interior liner Easy clean-up with a seamless liner that wont hold a mess in hidden crevices Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior Adjustable dial thermostat Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management Reversible door User-reversible door swing for added flexibility Fully finished black cabinet Allows the unit to be used freestanding CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations 100% CFC free Environmentally friendly design without ozone-damaging chemicals DESCRIPTION SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look. Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summits intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF. DOWNLOADS BROCHURE AR5BS.pdf USE & CARE BRF65S2_ADA65S2_ADA63S2_BAR61W2_ADA61W2_AR5SB_AR5BIF_User_Manual.pdf
