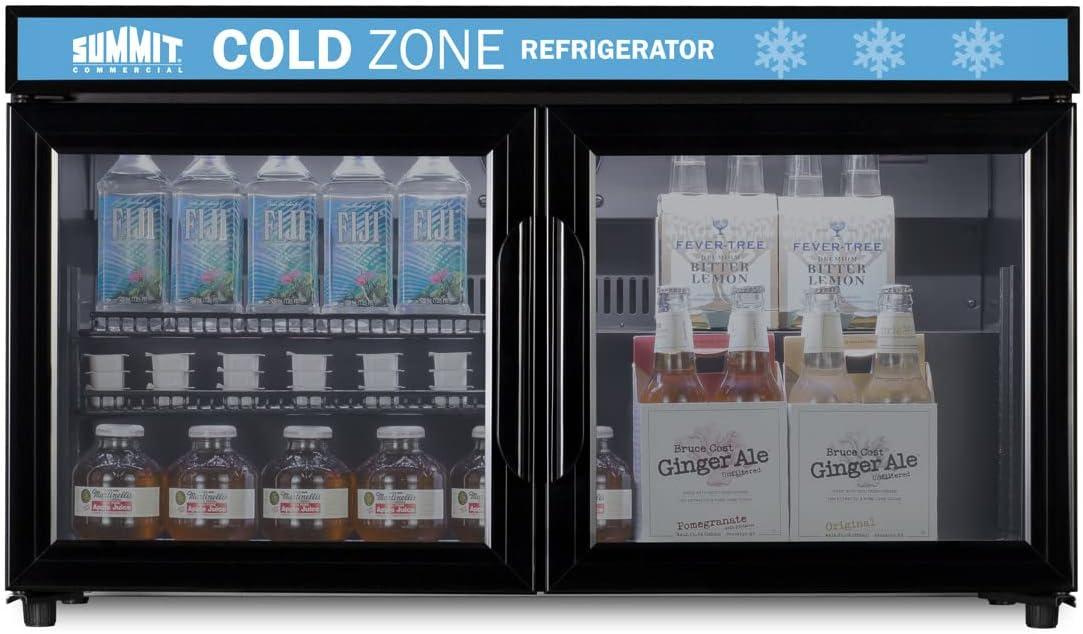

Description

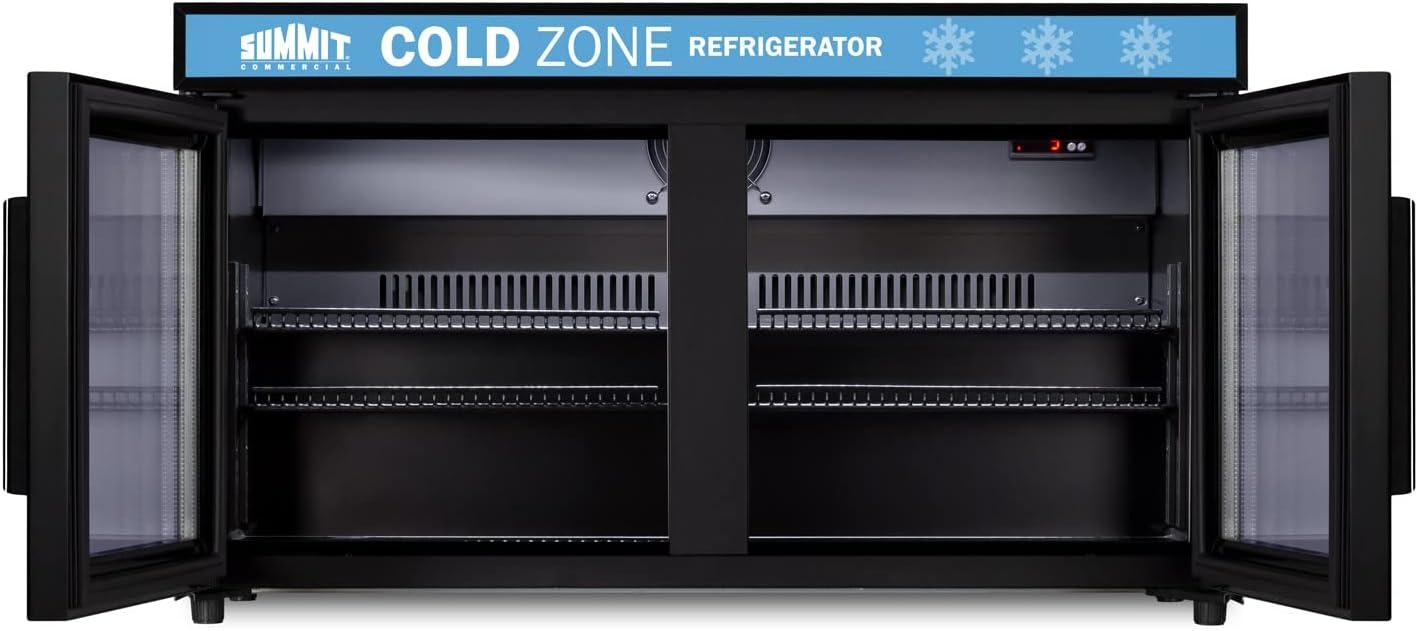

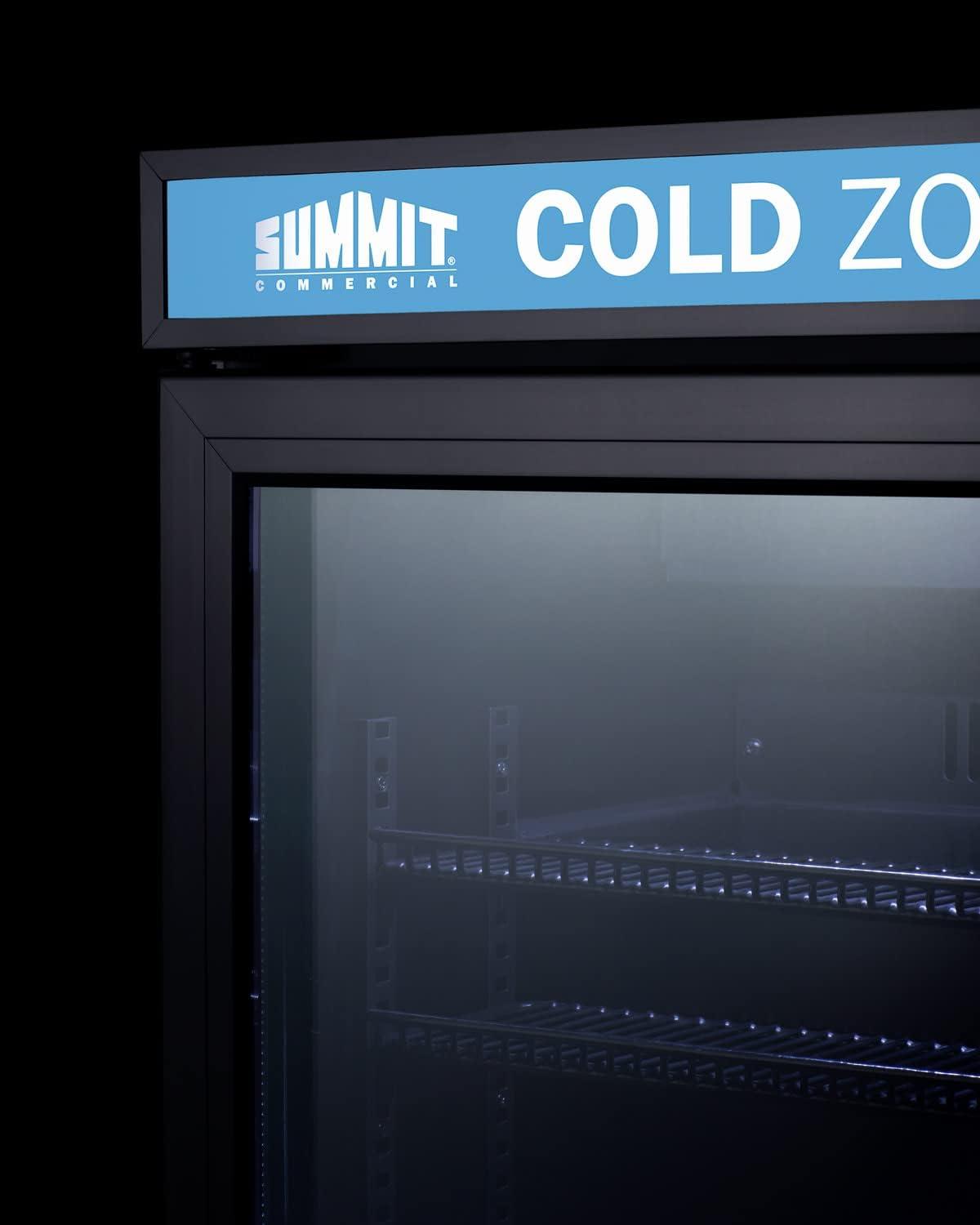

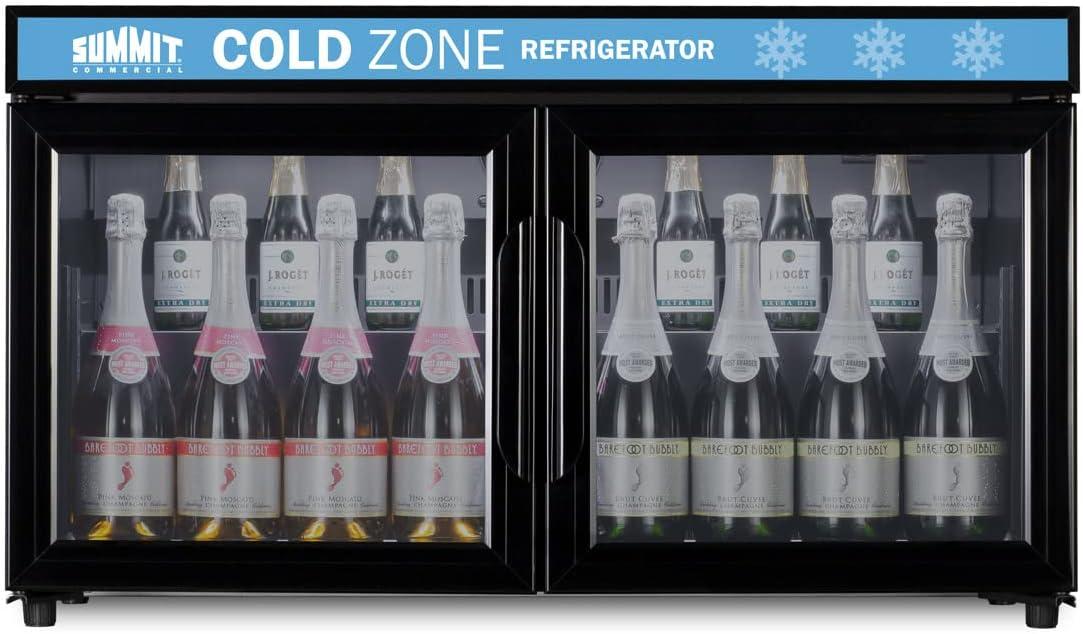

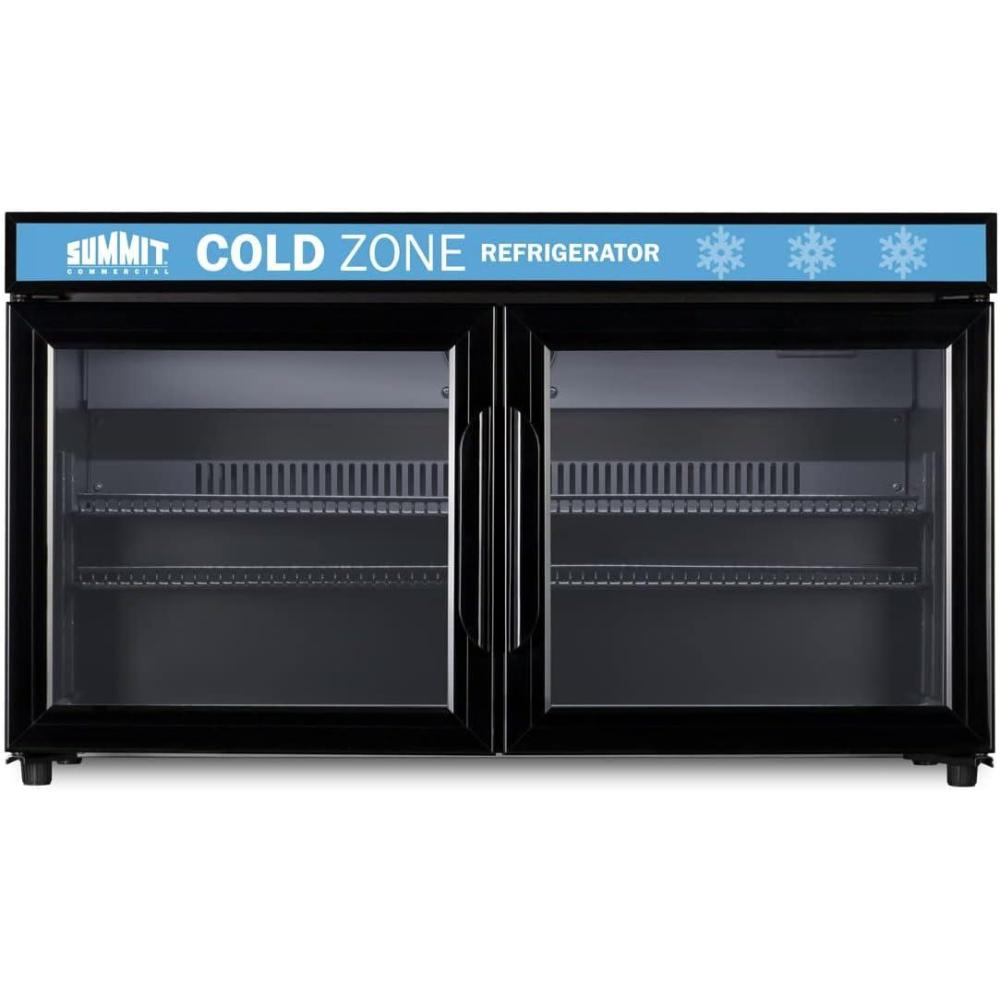

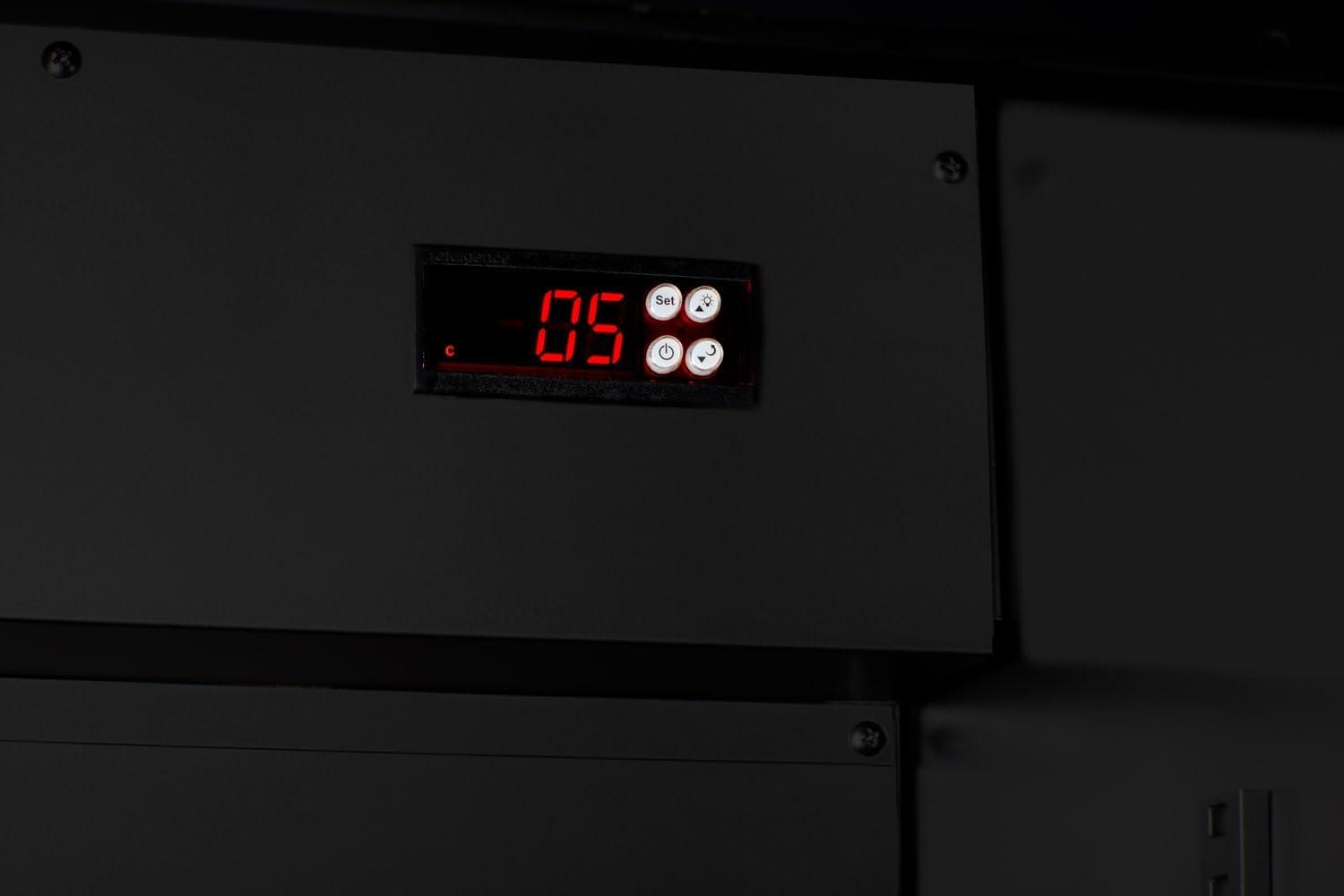

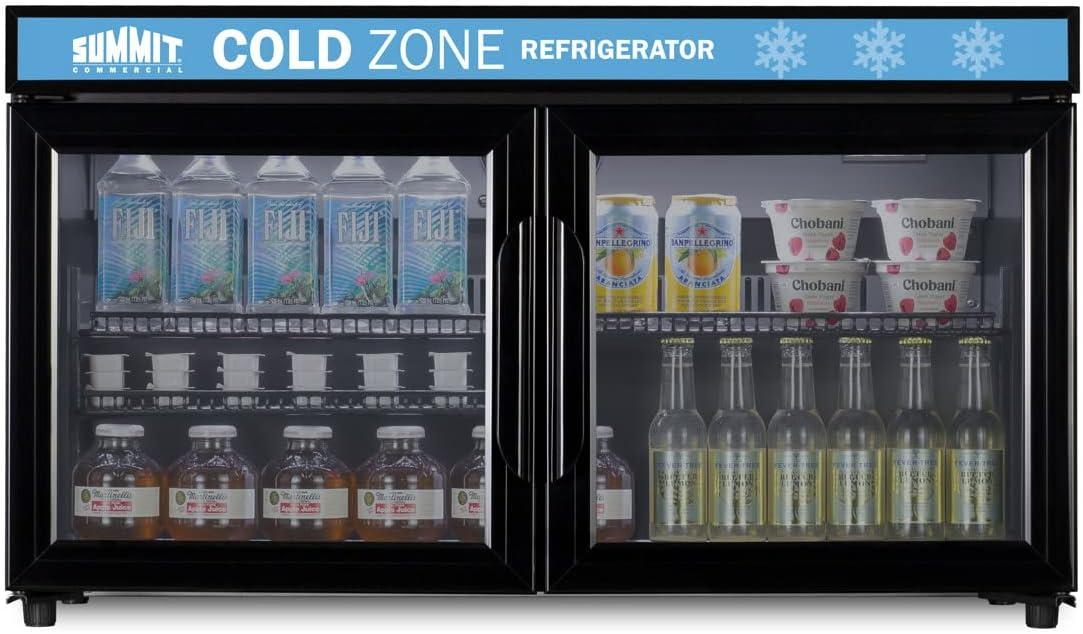

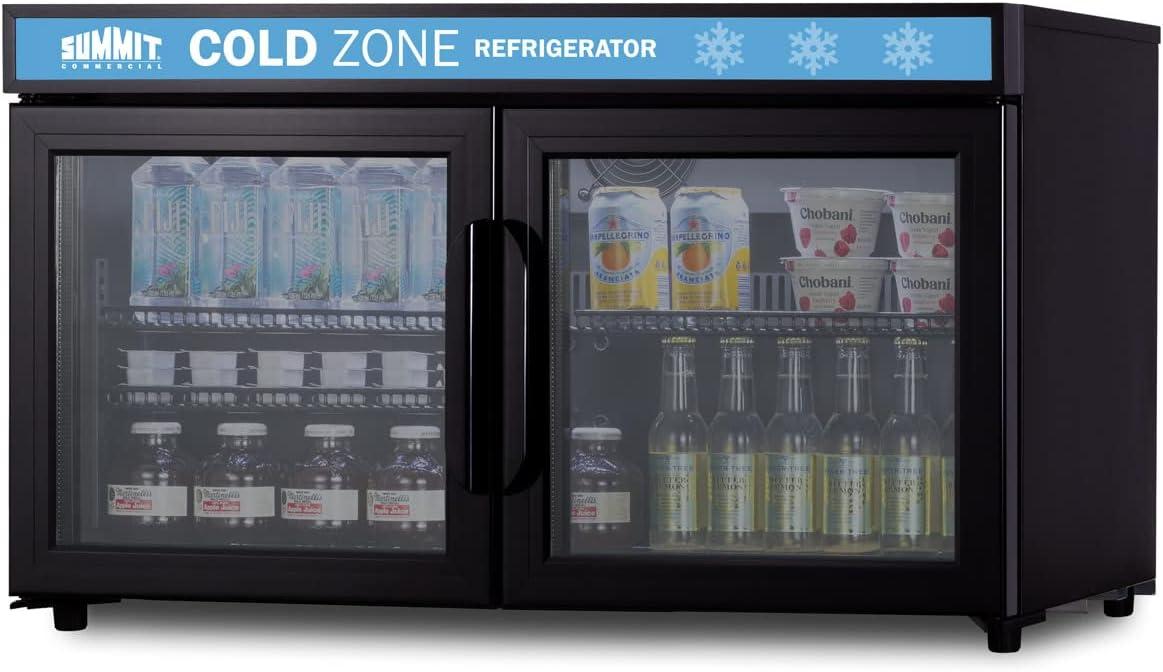

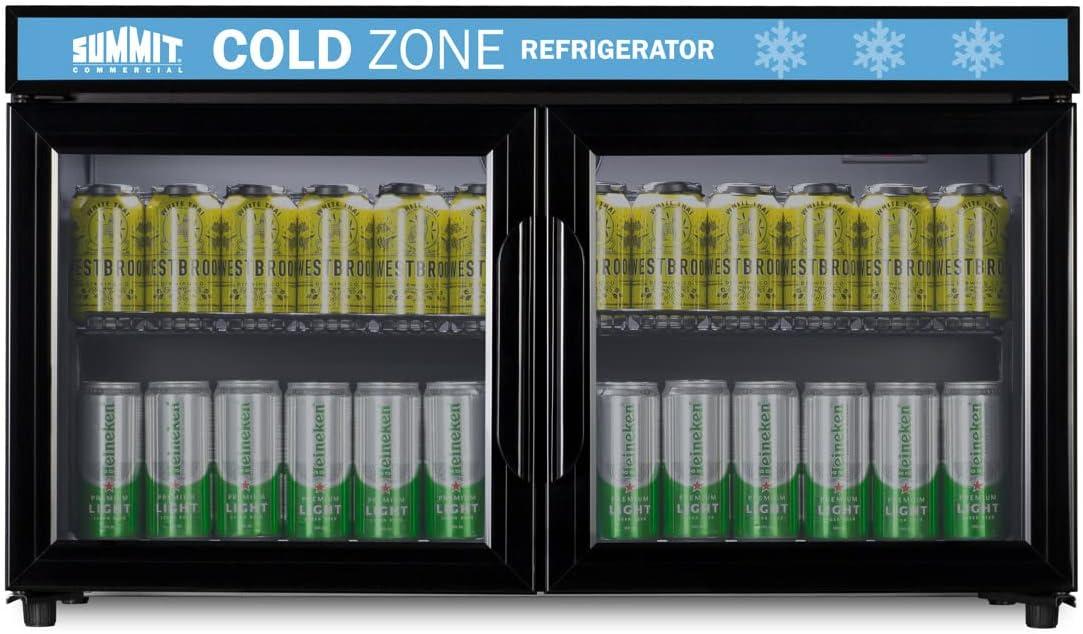

SPECIFICATIONS Overview Height of Cabinet 21.25″ (54 cm) Width 36.0″ (91 cm) Width with Door Open 39.0″ (99 cm) Depth 17.5″ (44 cm) Depth with Handle 18.5″ (47 cm) Depth with door at 90° 34.25″ (87 cm) Capacity 3.2 cu.ft. (91 L) Defrost Type Automatic Door Glass Cabinet Black US Electrical Safety UL 471 by SGS Canadian Electrical Safety CSA C22.2 No. 120 by SGS Sanitation NSF 7 by SGS Amps 1.2 Voltage/Frequency 115 V AC/60 Hz Weight 86.0 lbs. (39 kg) Shipping Weight 91.0 lbs. (41 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101076331 Refrigerator Features Door Swing French Shelf Type Wire Shelf Qty 4 Adjustable Shelves Yes Can Storage Yes Thermostat Type Digital Fan Type Interior Refrigerant Type R600a Refrigerant Amount 0.96oz. High Side PSI 320.0 Low Side PSI 130.0 Level Legs Qty 4 Interior Light Yes Temperature Range 2 to 6ºC/36°F to 43°F Dimensions Interior Height 13.63″ (35 cm) Interior Width 33.0″ (84 cm) Interior Depth 13.0″ (33 cm) Compressor Step Height 7.25″ (18 cm) Compressor Step Width 33.0″ (84 cm) Compressor Step Depth 7.25″ (18 cm) AVAILABLE UPGRADES Door T3F Door Tint Reflective door tint in light blue finish for medium energy savings T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings T2F Door Tint Tinted door in reflective deep blue finish with high energy savings FEATURES 17½” shallow depth Ideal for back bars, grocery stores, and similar spaces with limited footprint space Commercially approved Meets NSF-7 sanitation standards and UL-471 for use in commercial environments Exterior LED panel LED panel allows users to insert their own decal for a truly customizable look (size insert at 35.67″ W x 2.67″ H) French door swing Two side-by-side doors with French door opening Self-closing doors Doors will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures Automatic defrost Reduced user maintenance with automatic defrost system Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom Removable shelves Four black wire shelves accommodate a variety of storage options or can be removed to store larger food and beverage items Interior LED lighting Illuminates the interior for an easy view of stored contents Digital thermostat Electronic controls located on the inside for easy temperature management with a readout in Celsius On/off switch Easily allows users to manage the interior lighting to best meet their needs High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range Black handles Sturdy, curved black handles on each door provide for easy opening Fully finished black cabinet Allows the unit to be used freestanding Sealed back Space-saving design that offers easier cleanability 100% CFC free Environmentally friendly design without ozone-damaging chemicals CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations DESCRIPTION Summit Commercial refrigerators are designed for convenient use in an attractive presentation to increase impulse purchases. The SCR3502D is a 17.5″ shallow depth single-zone beverage refrigerator with a 36″ width, making it ideal for countertops and use on or in shelves (with proper ventilation). It is SGS-listed to NSF-7 standards for use in commercial settings and is designed for freestanding use. Its French door swing with two glass doors offers a full view inside the 3.2 cu.ft. interior, while pre-installed curved, sturdy black handles make for easy opening of the unit. Both doors have a self-closing feature to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. The fully-finished black cabinet suits any setting, with a sealed back for easier cleaning. Four leveling legs keep the unit level on uneven surfaces. Inside, the SCR3502D utilizes automatic defrost operation for minimal user maintenance. LED lighting illuminates the interior, while the front LED panel affords the ability for users to insert their own decal for a truly customizable look. Four black wire shelves accommodate a variety of storage options, including condiments, cans, and other refrigerated items. Additionally,the shelves can be removed to store bottles or larger food and beverage items. Each shelf has a front lip to ensure products are secure when the door is opened and closed. Digital controls located on the inside offer easy temperature management with a readout in Celsius. For added peace of mind, an audible high/low temperature alarm sounds if the temperature in the unit goes out of the recommended range. With its compact dimensions and customizable features, the SCR3502D is perfect for back bars, retail and convenience stores, supermarkets, and similar commercial environments seeking dependable refrigeration storage in a versatile design that fits in virtually any small space. For this unit with front locks, see the SCR3502DLL. DOWNLOADS BROCHURE w/ DRAWINGS SCR3502D.pdf TECHNICAL DRAWING (.dwg) SCR35O2D_BEV._CENTER__A-C_2018_.dwg USE & CARE SCR3502D_ACR3512D_Use_and_Care_V4_07.2021.pdf
