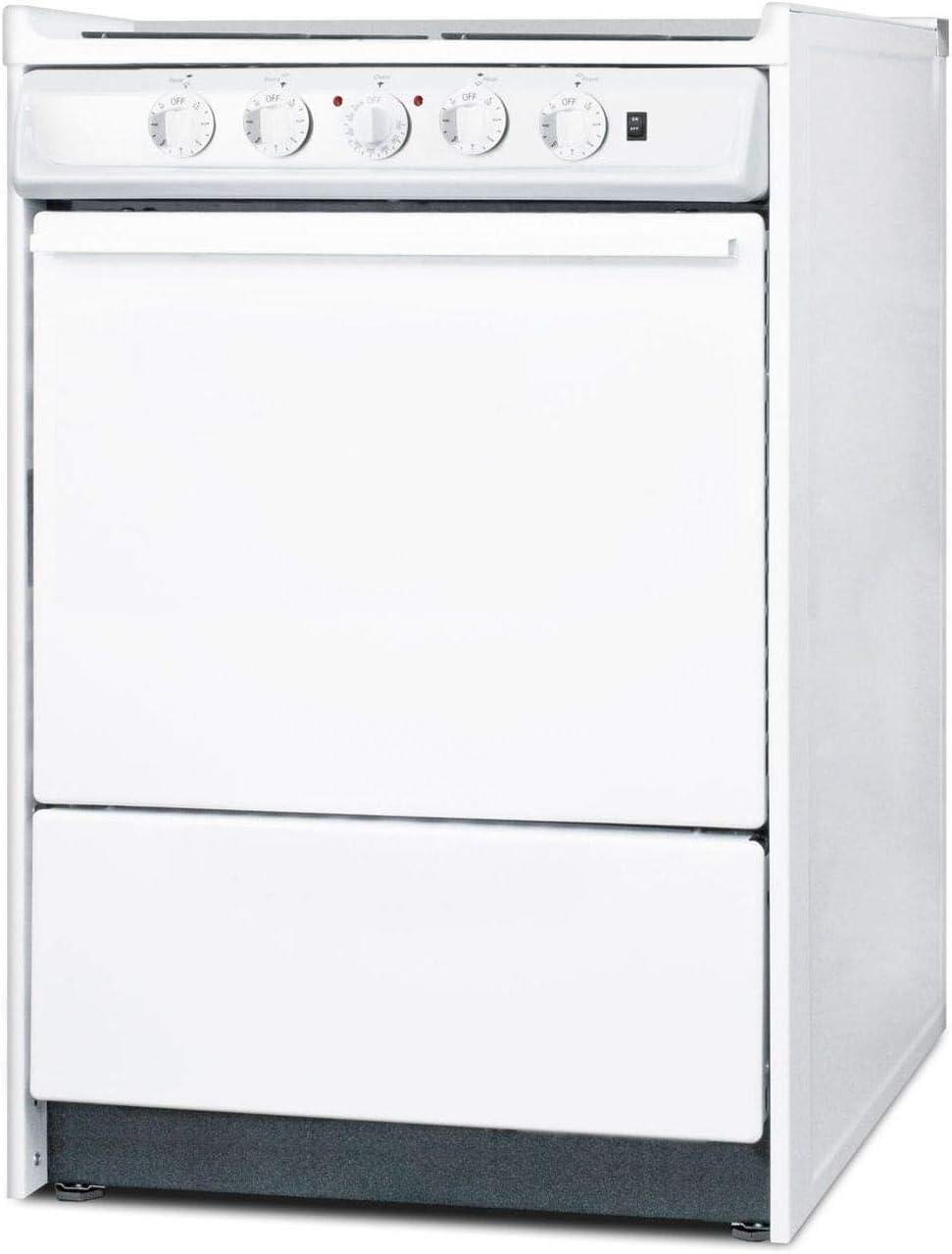

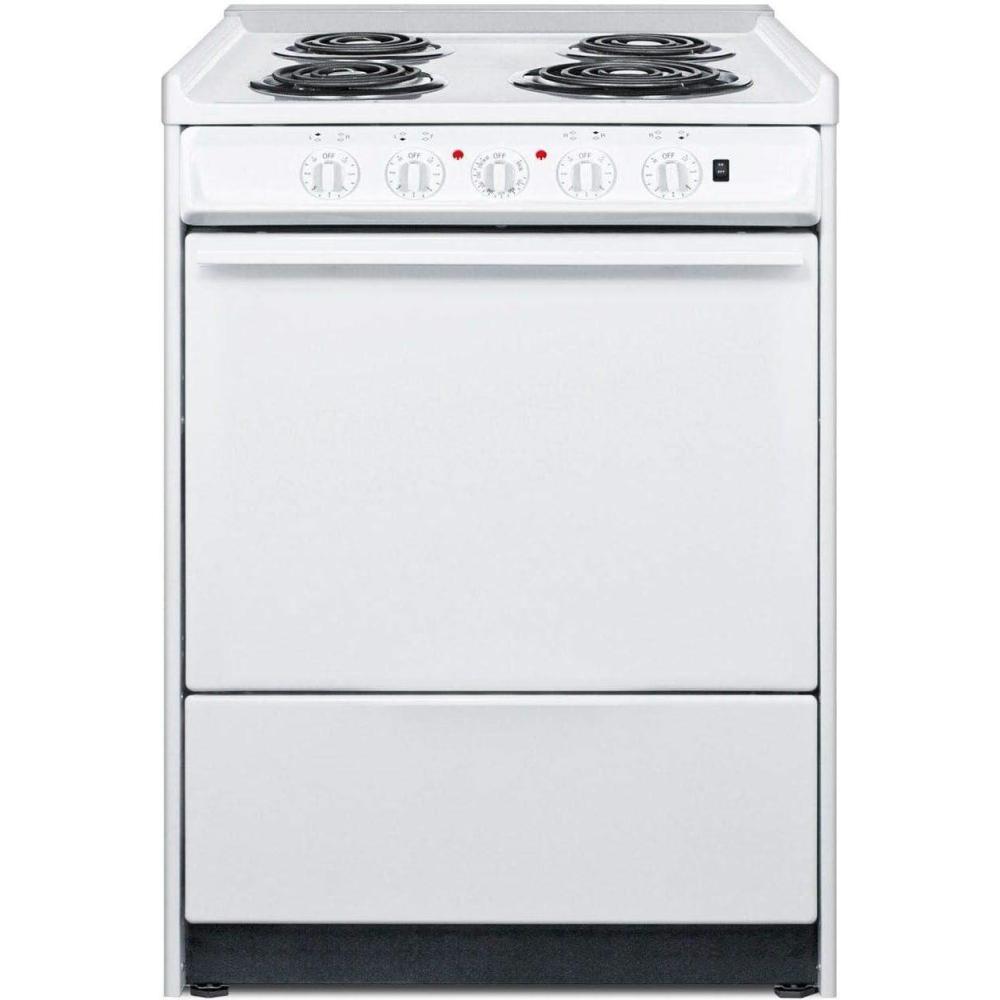

Summit Appliance WEM610R 24″ Wide Slide-in Electric Coil Top Range in White with Lower Storage Compartment, Recessed Oven Door, Broiler Pan, Indicator Lights, Push-to-turn Burner Knobs(White)

Description

SPECIFICATIONS Overview Height of Cabinet 36.0″ (91 cm) Width 24.0″ (61 cm) Depth 24.0″ (61 cm) Door White Cabinet White US Electrical Safety CSA Voltage/Frequency 220 V AC/60 Hz Weight 150.0 lbs. (68 kg) Shipping Weight 170.0 lbs. (77 kg) Parts & Labor Warranty 1 Year UPC 761101058184 Electric Range Oven Capacity 2.92 cu.ft. (83 L) Cooktop Surface Porcelain Element Type Coils Number of Elements 4 Element #1 Size 6.0″ (15 cm) Element #1 Wattage 675.0 Element #2 Size 6.0″ (15 cm) Element #2 Wattage 675.0 Element #3 Size 6.0″ (15 cm) Element #3 Wattage 675.0 Element #4 Size 8.0″ (20 cm) Element #4 Wattage 950.0 Burner Controls Dial Oven Controls Dial Cleaning Type Manual Oven Rack Qty 2 Oven Interior Height 14.0″ (36 cm) Oven Interior Width 19.0″ (48 cm) Oven Interior Depth 19.0″ (48 cm) Broiler Location Inside Oven AVAILABLE UPGRADES Exterior RangeCord3P – Installed 3-pronged cord 3-pronged NEMA 10-50P cord installed on stove RangeCord4P – Installed 4-pronged cord 4-pronged NEMA 14-50P cord installed on stove Interior Canadian Range Conversion Range is modified at factory to meet CSA-C standards Heat Sense – Temperature sensors to prevent coils from reaching flashpoint temperature Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures FEATURES Made in the USA Designed and constructed domestically Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint 24 inch depth Shallower fit is ideal for L-shaped and galley kitchens Slide-in look Low backguard trimmed in stainless steel makes it easier to integrate your own backsplash design Safety burners with low wattage outputs Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off Four coil elements Three standard 6″ and one large 8″ element Chrome drip pans Each element includes a removable chrome pan for easier cleaning Storage compartment Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen Waist-high broiler Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor Recessed oven door Smart design limits the depth and protects adjacent cabinets Porcelain and steel construction Solid construction built to hold up to everyday use Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes Upfront controls All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners Push-to-turn burner knobs Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range Removable oven door and range top Allows for easier cleaning as needed Broiler pan included Two-piece porcelain broiler tray with grease well Anti-tip bracket Included for user installation to help prevent tipping Cord not included Compatible with standard 40 amp 3 or 4-wire range cords ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines DESCRIPTION Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WEM610R is an apartment-sized 220V electric range sized at just 24″ wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8″ 950W and three 6″ 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM610R comes in a classic white finish, with a low backguard trimmed in stainless steel for a slide-in look. It has a recessed oven door and is conveniently sized at just 24″ deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20″, 30″, and 36″ wide fits. DOWNLOADS BROCHURE WEM610R.pdf USE & CARE Electric_Ranges__Wall_Ovens____Cooktops_Use___Care_rev_0417.pdf OTHER Summit_Anti-Tip_Bracket.pdf
